Cable cleats
Info

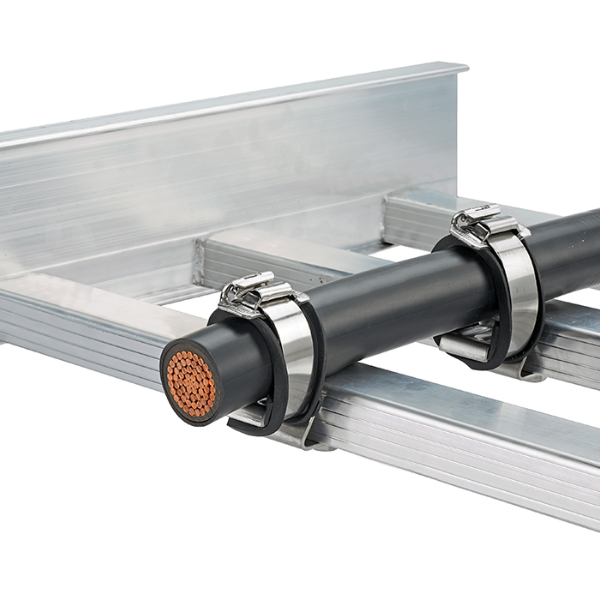

The Stainless Steel Locking Strap Cleat is an effective option for protecting against lower to medium short circuit fault current requirements in harsh environments. The strap is made of 316L stainless steel, has inherent cable range-taking, and is compatible with quad, trefoil, and multicore cables.
The cleat is installed after running the cable via a unique in the industry mounting bracket. It is tensioned and cut using a battery-operated, electromechanical or manually-operated, ratchet-style installation tool. The straps have rounded edges to protect from damaging the cable and are often used in combination with a cushion sleeve inserted between the strap and cable for added protection.
Mounting Brackets for Easy Installation and Labor Savings
Install cable cleats after the cable is pulled with Panduit mounting brackets that affix to the cable tray and cleat after the cable is run in the tray.
UC Series Brackets work in concert with Panduit’s unique MLT Series Locking Strap Cleats and MS75 Series Buckle Strap Cleats.
Ytterligare information
Beskrivning
Locking strap cleat
| Partnumber | Trefoil Double Loop
Cable Diameter Range |
Flat Multicore Double Loop
Cable Diameter Range |
Width | Thickness | Length | Pkg. Qty |
| MLT4DH-L316 | 12mm to 42mm | 12mm to 95mm | 7,9mm | 0,25mm | 711mm | 50 |
| MLT4DH-L | 12mm to 42mm | 12mm to 95mm | 7,9mm | 0,25mm | 711mm | 50 |
| MLT4DEH15-Q316 | 12mm to 42mm | 12mm to 95mm | 12,7mm | 0,38mm | 749mm | 25 |
| MLT4DSH-Q316 | 12mm to 42mm | 12mm to 95mm | 15,9mm | 0,38mm | 749mm | 25 |
| MLT4DSH-Q | 12mm to 42mm | 12mm to 95mm | 15,9mm | 0,38mm | 749mm | 25 |
| MLT5DH-L316 | 42mm to 58mm | 95mm to 120mm | 7,9mm | 0,25mm | 863mm | 50 |
| MLT6DEH15-Q316 | 42mm to 72mm | 95mm to 150mm | 12,7mm | 0,38mm | 1054mm | 25 |
| MLT6DSH-Q316 | 42mm to 72mm | 95mm to 150mm | 15,9mm | 0,38mm | 1054mm | 25 |
| MLT6DSH-Q | 42mm to 72mm | 95mm to 150mm | 15,9mm | 0,38mm | 1054mm | 25 |
| MLT6DH-L316 | 58mm to 72mm | 120mm to 150mm | 7,9mm | 0,25mm | 1016mm | 50 |
| MLT8DEH15-Q316 | 72mm to 100mm | 150mm to 195mm | 12,7mm | 0,38mm | 1359mm | 25 |
| MLT8DSH-Q316 | 72mm to 100mm | 150mm to 195mm | 15,9mm | 0,38mm | 1359mm | 25 |
| MLT8DSH-Q | 72mm to 100mm | 150mm to 195mm | 15,9mm | 0,38mm | 1359mm | 25 |
Mounting brackets
| Partnumber | Description | Pkg. Qty |

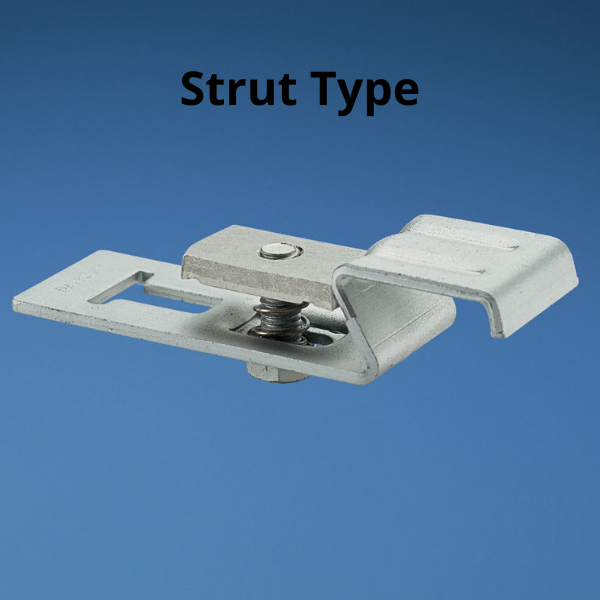

| UCSQ1-VC | Strut Type, galvanized steel. | 5 |
| UCRND1-VC | Round, galvanized steel. | 5 |

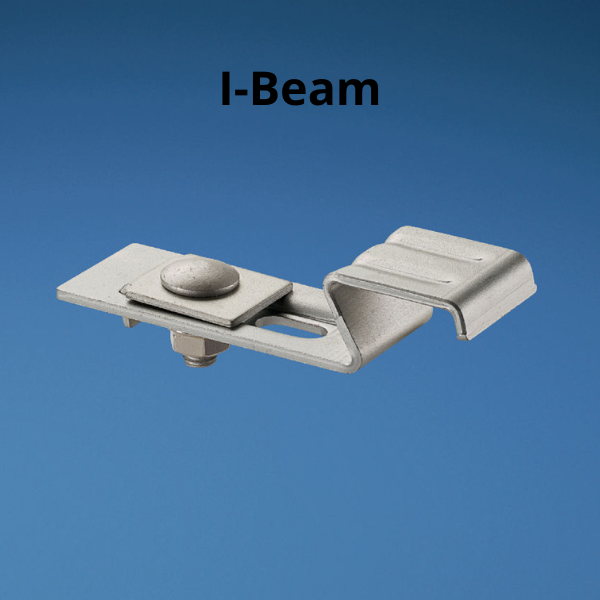

| UCIB1-VC | I-Beam, galvanized steel. | 5 |
| UCTH1-VC | Top Hat, galvanized steel. | 5 |
| UCFG1-V316 | Use with composite fiberglass cable trays, 316L stainless steel. | 5 |
| UCSQ1-V316 | Strut Type, 316L stainless steel. | 5 |
| UCRND1-V316 | Round, 316L stainless steel. | 5 |
| UCIB1-V316 | I-Beam, 316L stainless steel. | 5 |
| UCTH1-V316 | Top Hat, 316L stainless steel. | 5 |

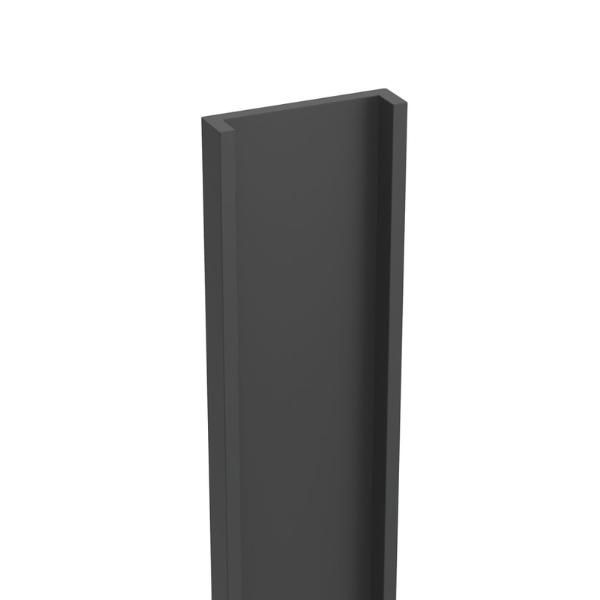

Cushion sleeve
| Partnumber | Description | Length | Width | Pkg. Qty |
| PCSLSH-B-CR | Cushion sleeving used with locking strap cleats and buckle strap cleats. | 30,5mm | 26,8mm | 1 |
